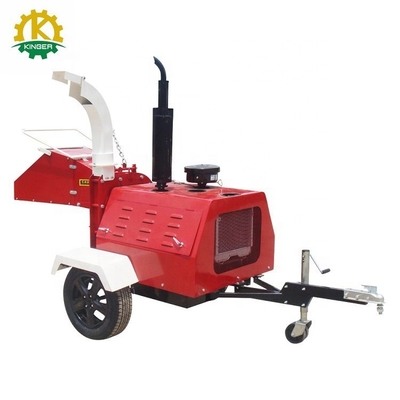

A. Trailer Mounted Wood Chipper,
B. complete automatic hydraulic feeding roller, 3 blades, 8" diameter capacity,
C. powered by electric start diesel engine in 22hp, 40hp, 50hp,
D. equipped with turning and brake lights,
E the knives, 2" ball hitch, safety chains and leaf spring on the axle,
F. Discharge hood rotates 360 degrees
Model | WS-22A | WS-40A | WS-50A | ||
Engine Type | Level type single cylinder, stroke diesel engine | Vertical 4cylinder, 4 stroke diesel engine | |||
Engine model | 1115 | 490 | 4L68 | ||
Engine power | 22hp | 40hp | 50hp | ||
Colling method | Water circulation | Water circulation | Water circulation | ||
Rated engine rev | 2200rpm | 2200rpm | 2200rpm | ||
Diameter of chipper disc | 600mm | 600mm | 600mm | ||
Max Dia of Feeding | 6’’ (15cm) | 8’’ (20cm) | 8’’ (20cm) | ||
Chipper disc rev | 1025mm | 1025mm | 1025mm | ||
Feeding systerm | Hydraulic feedding, adjustable speed, stop-reverse-forward function. | ||||
Number of blades | 2pcs rotary blades, 1pcs stationary blade. | ||||
Chip size | Thickness~4mm | Thickness~4mm | Thickness~4mm | ||
Discharge chute rotate size | 360 degree | 360 degree | 360 degree | ||
Weight | 650kgs | 800kgs | 850kgs | ||
Working efficiency | 8-10m3/H | 8-12m3/H | 8-13m3/H | ||
Volume of hydraulic oil tank | 18L | 38L | 38L | ||
Paching size (W*D*H)mm | 1550*1460*1320 | 1800*1500*1350 | 1800*1500*1350 |
Q1:Why choose Kinger?
A1: * Kinger has 8 years experience in manufacturing argriculture implements,more specialized in bulk production;
*More professional team in purchasing,producing,sales and technology,with excellent equipments;
*Have fast after-sales service ;
*More innovative, 3 new products annually .
Q2: What's the Min. order quantity?
A2: we accept 1set sample for testing.
Now our agri machines are exported in large quantity.
If you need one sample for test, we advise you to get this sample as test
Q3:What is your payment term?
A3: By bank transfer or Alibaba trade assurance(credit card is available).
Q4: How to order?
A4: * first pls tell us which model do you need? or your working requirements?
* we will supply the quotation list and solution;
* we send proforma invoice or start order from Alibaba for payment;
* we will arrange the production and shipment after confirma payment.
Q5: warranty & sales service:
A5: we supply 1 year warranty and machine life sales serive.
If any problems during using, please freely let us know, thanks.
