2022 Log Factory Supplier Manufacturer Price PTO Wood Chipper Tractor PTO Driven

1.0 Sets
MOQ
2022 Log Factory Supplier Manufacturer Price PTO Wood Chipper Tractor PTO Driven
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Condition: New, New
Applicable Industries: Farms, Wood Chipping Machine, Agricultural Straw Machine, Palm Fiber
Showroom Location: None
Type: Wood Chipper
Use: Wood Chipper
Power Type: Electric
Dimension(L*W*H): 1700*1700*1150
Weight: 3200 KG
Warranty: 1 Year
Key Selling Points: High Productive
Marketing Type: Hot Product 2019
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Bearing, PLC, Knife
After-sales Service Provided 1: Engineers available to service machinery overseas
After-sales Service Provided 2: Field installation, commissioning and training
Application: Log, wood, timber into wood chip
Diameter of feeding wood: Less 250mm
Disc Rotation Diameter: 650mm
Power: Diesel engine or motor
Thickness of wood chip: 5-7mm
Q'ty of knife: 2 pieces
Wearing spare parts: Knife, bearing
Certificazione: CE ISO
Informazioni di base
Certificazione: CE ISO
Termini di pagamento e spedizione
Packaging Details: The package of 2022 Factory Supplier Manufacturer Price PTO Wood Chipper Tractor PTO Driven is plywood package or iron support.
Supply Ability: 1000 Set/Sets per Year PTO Wood Chipper Tractor PTO Driven
Descrizione di prodotto
Product Description

2022 Factory Supplier Manufacturer Price PTO Wood Chipper Tractor PTO Driven is a special equipment for machining chips. It is widely used in the preparation period of raw material in particle board industry, fiber board industry, paper making industry and especially in chip manufacturing.Altered drum chipper also can be used in making chips for fuel of electricity industry and furnace.

Application of 2022 Factory Supplier Manufacturer Price PTO Wood Chipper Tractor PTO Driven

Raw material for 2022 Factory Supplier Manufacturer Price PTO Wood Chipper Tractor PTO Driven can be wood logs, stump, branches, shrub, bamboo, wood waste of cutting trees,cotton branches and other fiber stem without wood.This machine can’t cut the following raw material very equal: raw material with too large diameter (exceeding 85% dimension of the in-feed opening),too small diameter (less than 20mm),too short(less than 250mm),too thin (less than 5mm) and very hard,irregular material.

Feature of 2022 Factory Supplier Manufacturer Price PTO Wood Chipper Tractor PTO Driven:



2022 Factory Supplier Manufacturer Price PTO Wood Chipper Tractor PTO Driven is designed of reasonable structure, high efficiency. It can be used for wide range of raw material and easily to operate.So it is the best choice for large wood chips factories and MDF factories.

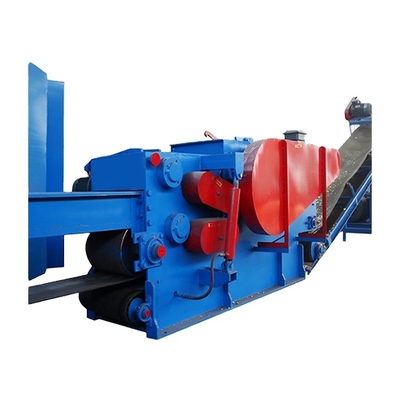

Detailed Image
Technical Parameters
2022 Factory Supplier Manufacturer Price PTO Wood Chipper Tractor PTO Driven
G315
G316
G318
Main driven motor (kw)
45
55
110
Feeding roller motor(kw)
5.5
7.0
9.5
Capacity(m3/h)
3-6
8-12
15-20
Number of rotor knives(pcs)
2-4
2-4
2-4
Rotor diameter(mm)
500
600
800
Feeder size(mm)
400*180
540*220
680*280
Rotor speed(rpm)
630
592
620
Feed speed(m/min)
30-40
30-40
35-40
chipped size(mm)
10-35*10-35*5-10
10-35*10-35*5-10
10-35*10-35*5-10
Net Weight(kg)
3200
4200
7150
Outsize(mm)
1700*1700*1150
2100*2100*1250
2370*2400*1500
Packing and Delivery

Packing and Delivery

- Base on the shape and weight of machine to choose the wood pallet or iron pallet.

   100% well-packing to ensure the arrival safety with ocean cargo insurance.

- We send our packer to the port to inspect the loading.

Our Service


Customer is God.

Your satisfaction is our unremitting pursue.

Certification
